CCG Compression Gland A2F-R 26-34mm For Unarmoured PVC Cable

    Vendor: CCG Type: Glands & Accessories
    Barcode: CCG059004 | MPN: 059004 | SKU: CCG059004
    $231.95
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    Pairs well with
    Share to:
    View Full Details
    1 / 1
    Press & drag to view

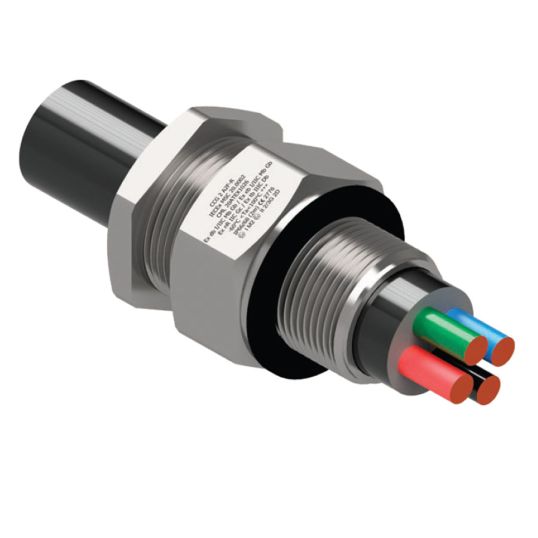

    Compression Gland, M40, 15mm Thread Length, 1.5mm, 26mm Min. Sheath OD, 34mm Max. Sheath OD, 52mm Width Across Flats, 59mm Width Across Corners, For Use With Unarmoured PVC Cable, 65 Nm Torque Rating, IP65/IP66/IP68, Brass (Marine Grade ), Aluminium or Stainless Steel 316/316L Body, Standard Thermoset Elastomer or Extreme Temperature Seals Seal, HDPE, Nylon 66 or PTFE Gasket, 38mm Overall Length, Standard:-60 to 95/110 deg C, Extreme Temp:-60 to 160 deg C

    Service & Support

    Warranty

    This product is backed by a 12-month warranty, covering defects in materials and workmanship under normal use.

    Technical Assistance

    Our dedicated support team is available to assist with product setup, operation guidance, and troubleshooting. Contact us via email for prompt service.
